Loeffler 150# Commercial Angle & Globe Hose Valves
1½ inch valves have union bonnets. 2½ inch valves have bolted bonnets (OSY). All valves feature soft composition seat disc, brass handwheel and come complete with hose cap and chain. Loeffler 150 lb. flanged hose valves have a monel stem and bronze disc holder. All valves can be ordered with full monel trim. All flanges are faced and drilled. Hose outlet threads can be modified to meet your requirements. All valves are 100% hydrostatically tested before shipment.
| 150 LB. COMMERCIAL BRONZE ANGLE AND GLOBE HOSE VALVE |

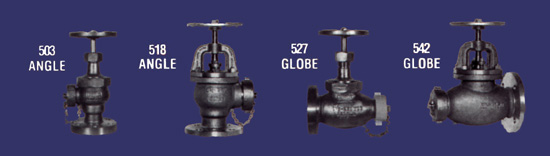

503 ANGLE |
518 ANGLE |
527 GLOBE |
542 GLOBE |
| SIZE IN INCHES |
1½ |
2½ |
| HOSE CENTER TO FLANGE FACE- ANGLE |
3¼ |
4¾ |
| FLANGE FACE TO HOSE END- GLOBE |
73/16 |
9 ⅝ |
| FLANGE FACE TO TOP OF WHEEL- ANGLE (SEAT OPEN) |
1013/16 |
13½ |
| FLANGE CENTER TO TOP OF WHEEL -GLOBE (SEAT OPEN) |
8⅛ |
10⅜ |
| OUTSIDE DIAMETER OF FLANGE |
5 |
7 |
| THICKNESS OF FLANGE |
7/16 |
9/16 |
| THREADS PER INCH- HOSE END - NATIONAL HOSE THREAD |
9 |
7½ |
| DIAMETER OF HANDWHEEL |
5 |
7 |
Loeffler 250# NAVY Angle & Globe Hose Valves
1½ inch valves have union bonnets. 2½ inch valves have bolted bonnets (OSY). All valves feature soft composition seat disc, brass handwheel and come complete with hose cap and chain. Loeffler 250 lb. Navy flanged hose valves have a monel stem and bronze disc holder. All valves can be ordered with full monel trim. All flanges are faced and drilled. Hose outlet threads can be modified to meet your requirements. All valves are 100% hydrostatically tested before shipment.
| 250 LB. NAVY BRONZE ANGLE AND GLOBE HOSE VALVE
1½ INCH=NAVSEA DWG. NO. 803-1385711 2½ INCH=NAVSEA DWG. NO. 803-1358712 |
506 ANGLE |
521 ANGLE |
530 GLOBE |
545 GLOBE |
| SIZE IN INCHES |
1½ |
2½ |
| HOSE CENTER TO FLANGE FACE- ANGLE |
3¾ |
4⅞ |
| FLANGE FACE TO HOSE END- GLOBE |
73/16 |
9 ⅝ |
| FLANGE FACE TO TOP OF WHEEL - ANGLE (SEAT OPEN) |
113/16 |
13⅞ |
| FLANGE CENTER TO TOP OF WHEEL - GLOBE (SEAT OPEN) |
8⅛ |
10⅜ |
| OUTSIDE DIAMETER OF FLANGE |
51/16 |
6⅛ |
| THICKNESS
OF FLANGE |
13/16 |
15/16 |
| THREADS
PER INCH - HOSE END - NAVY HOSE THREAD |
11½ |
7½ |
| DIAMETER
OF HANDWHEEL |
5 |
7 |
Loeffler 300# Commercial Angle & Globe Hose Valves
1½ inch valves have union bonnets. 2½ inch valves have bolted bonnets (OSY). All valves feature soft composition seat disc, brass handwheel and come complete with hose cap and chain. Loeffler 300 lb. flanged hose valves have a monel stem and bronze disc holder. All valves can be ordered with full monel trim. All flanges are faced and drilled. Hose outlet threads can be modified to meet your requirements. All valves are 100% hydrostatically tested before shipment.
| 300 LB. COMMERCIAL BRONZE ANGLE AND GLOBE HOSE VALVE |
508 ANGLE |
523 ANGLE |
532 GLOBE |
547 GLOBE |
| SIZE IN INCHES |
1½ |
2½ |
| HOSE CENTER TO FLANGE FACE - ANGLE |
3¼ |
4⅞ |
| FLANGE FACE TO HOSE END - GLOBE |
73/16 |
9 ⅝ |
| FLANGE FACE TO TOP OF WHEEL - ANGLE (SEAT OPEN) |
111/16 |
13¾ |
| FLANGE FACE TO TOP OF WHEEL - GLOBE (SEAT OPEN) |
8⅛ |
10⅜ |
| OUTSIDE DIAMETER OF FLANGE |
6⅛ |
7½ |
| THICKNESS OF FLANGE |
11/16 |
13/16 |
| THREADS PER INCH - HOSE END - NATIONAL HOSE THREAD |
9 |
7½ |
| DIAMETER OF HANDWHEEL |
5 |
7 |
Loeffler 100 lb. B135 Angle & Globe Stop Valves
1½ inch valves have union bonnets. Valves 2 inch and larger have bolted bonnets. All valves are equipped with metal to metal seats, monel rising stems, aluminum handwheels and are available with full monel trim. Flanges are faced and drilled. All valves are 100% hydrostatically tested before shipment.

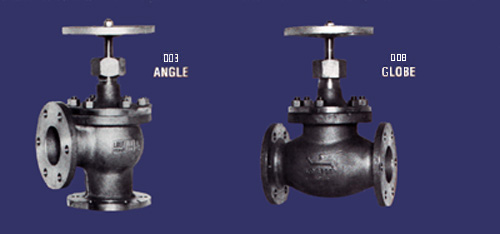

| 100 LB. NAVY- B135 BRONZE ANGLE AND GLOBE STOP VALVES TO NAVSEA DWG. NO. 803-1385541 |
| SIZE IN INCHES |
1½ |
2 |
2½ |
3 |
3½ |
4 |
5 |
| INLET FLANGE TO CENTER OF OUTLET FLANGE - ANGLE |
3⅜ |
4 |
4½ |
5 |
5½ |
6 |
7⅛ |
| FLANGE TO FLANGE- GLOBE |
6¾ |
8 |
9 |
10 |
11½ |
12½ |
14¾ |
| FLANGE DIAMETER |
51/16 |
59/16 |
6⅛ |
6⅝ |
73/16 |
711/16 |
91/16 |
| FLANGE THICKNESS |
7/16 |
7/16 |
½ |
½ |
½ |
½ |
9/16 |
| HANDWHEEL DIAMETER |
5 |
6 |
7 |
8 |
9 |
9 |
11 |
|
